How to change drawing orientation in AutoCAD while printing

Some times many of us may need to face the below problem while taking printout or converting drawing into pdf, etc. in autocad.

I am not able to change the Orientation of drawing or paper in AutoCAD

Mainly we need to convert from landscape to portrait or portrait to landscape.

Right?

We will solve this issue…

Most of us problem will be… we will be struggling with below window… Right?

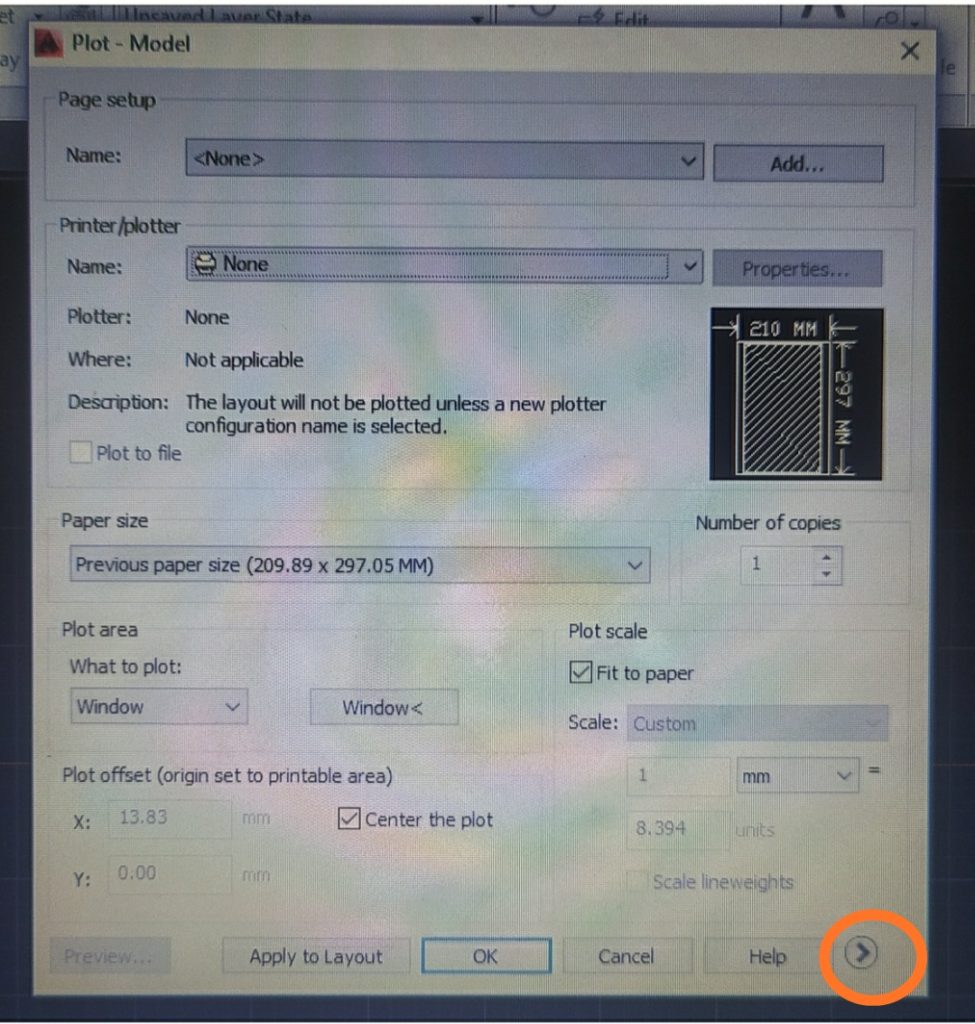

You are not seeing a small arrow mark.

Refer picture below..

Click on that arrow mark.

And you will see a new portion of the window…

It will solve your problem.

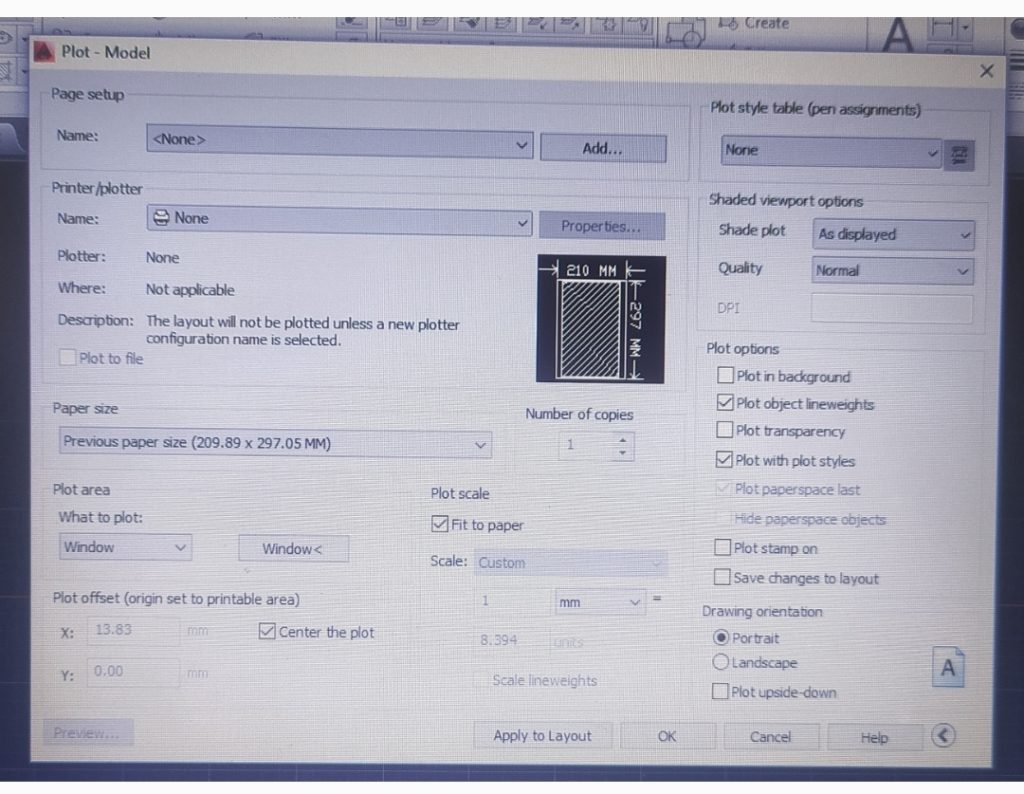

Autocad plot window – Drawing orientation

Now you can see the options to change the Orientation.

Thank you.
